Industrial Drivers
Empowering industries with advanced IT hardware, diagnostic tools,
and e-payment devices for seamless operations.
At Elecbits, we believe the future of industrial automation and IoT infrastructure lies in powerful, modular, and scalable hardware. Our Industrial Driver Series includes a suite of high-performance PCBs developed to serve complex use cases in energy monitoring, motor diagnostics, and embedded computing.
Each board is designed for durability, communication flexibility, and intelligent processing—making them ideal for enterprise deployments across sectors like electric mobility, consumer appliances, and smart infrastructure.
Edge Compute
Multi-Protocol
Modular Design
Device Diagnosis
Industrial Grade
Remote Update

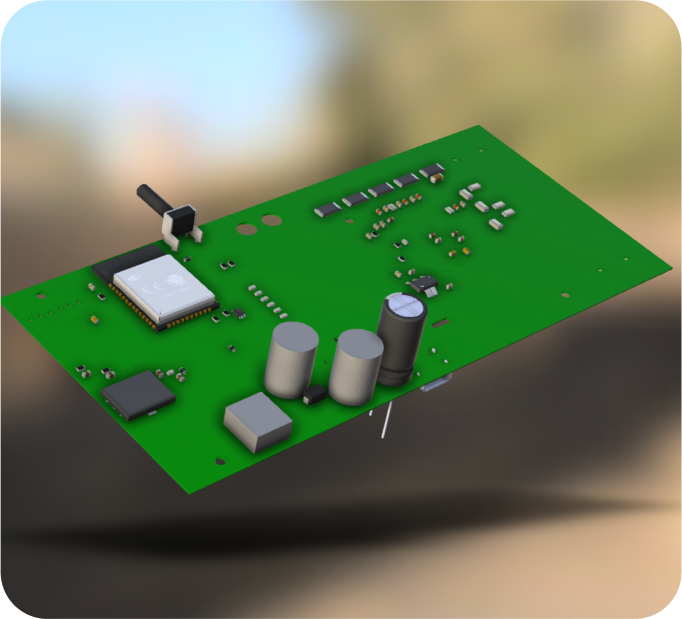

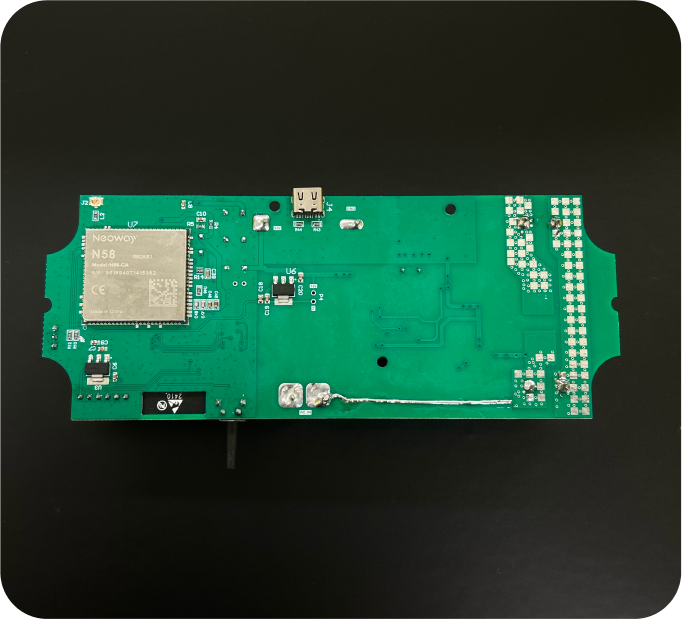

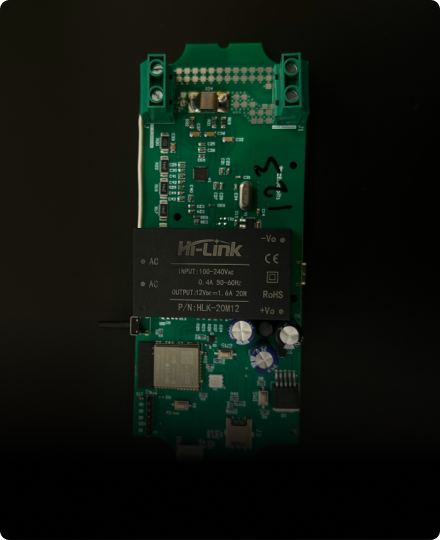

Smart Energy Monitoring
IoT 4G-enabled energy gateway for real-time monitoring
Smart Energy Monitoring
(IoT-4G based gateway device)
Elecbits’ Smart Energy Monitoring device is an IoT-enabled gateway that combines advanced energy metering with robust wireless connectivity. This 4G (LTE) and Wi-Fi equipped energy meter provides real-time power usage calculations and on-device (edge) processing for instant insights.
Key Features:
Real-time monitoring and calculation of voltage, current, power, and energy consumption for immediate analytics.
Onboard processing that analyzes data locally, reducing latency and dependence on cloud connectivity for critical decisions.
Built-in temperature sensors to monitor device and ambient conditions, adding an extra layer of safety and data context.
Electric Vehicle (EV)Charging Stations
Smart Grid &Utilities
Industrial EnergyManagement
| Commodity Model | ES32-NS8-ADE9153-RLY15-GW-75 |
|---|---|
| Product Category | Gateway (IoT Energy Meter) |
| Warranty | 18 Months |
| Operation Environment | Indoor / Outdoor (industrial grade) |
| Temperature Range | -40°C to +85°C |
| Sleep Mode | Available (low-power standby) |
| Communication | Cellular (4G LTE, GPRS), Wi-Fi (2.4GHz); GPS support |
| Local Communication | BLE 5.0 (Bluetooth Low Energy) |
| Connectivity | MQTT/HTTP via 4G; Wi-Fi client; BLE for local data |
| SIM Type | M2M embedded SIM (LTE) |
| GNSS Receiver Bands | GPS L1, Galileo, GLONASS, BeiDou, QZSS |
| Dimensions | 180 mm × 80 mm × 50 mm |
| Voltage | 0–300 |
| Current | 30 Amps |
| Power | 7.7 KW |

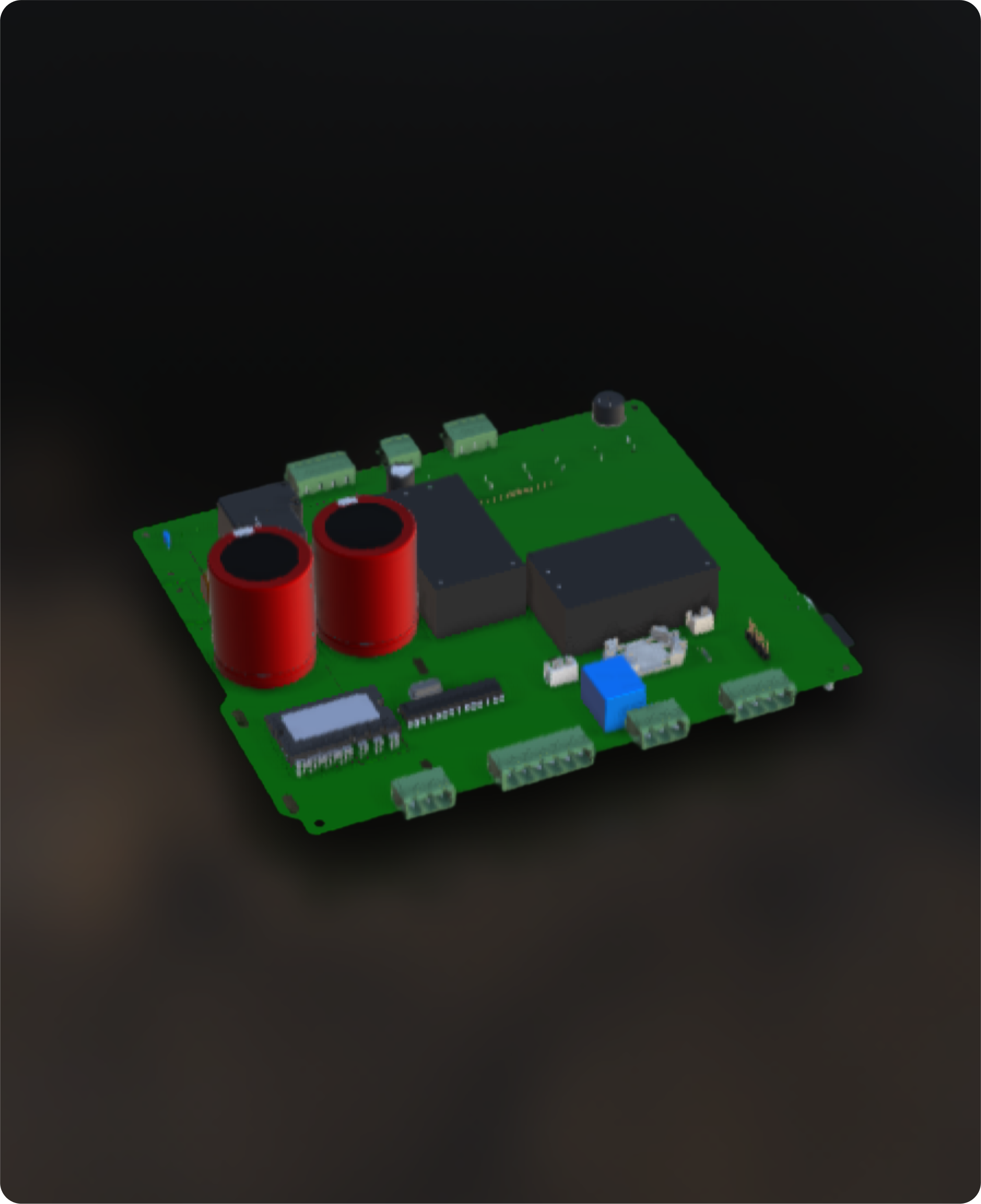

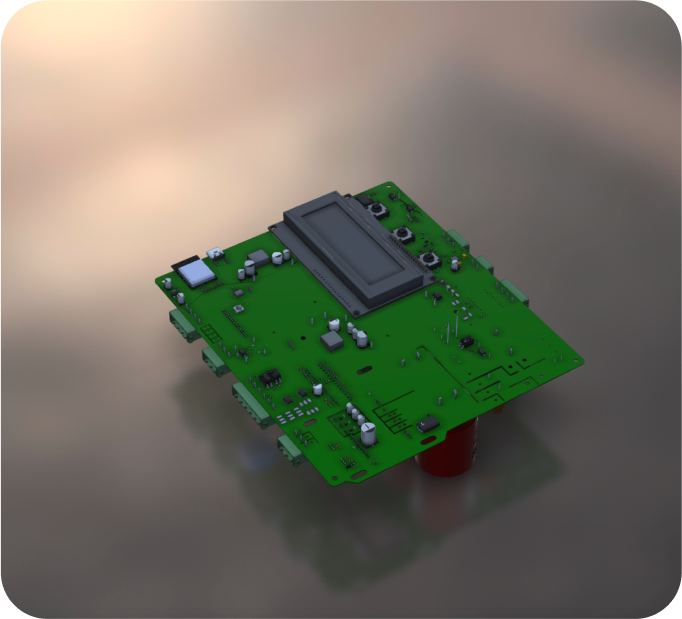

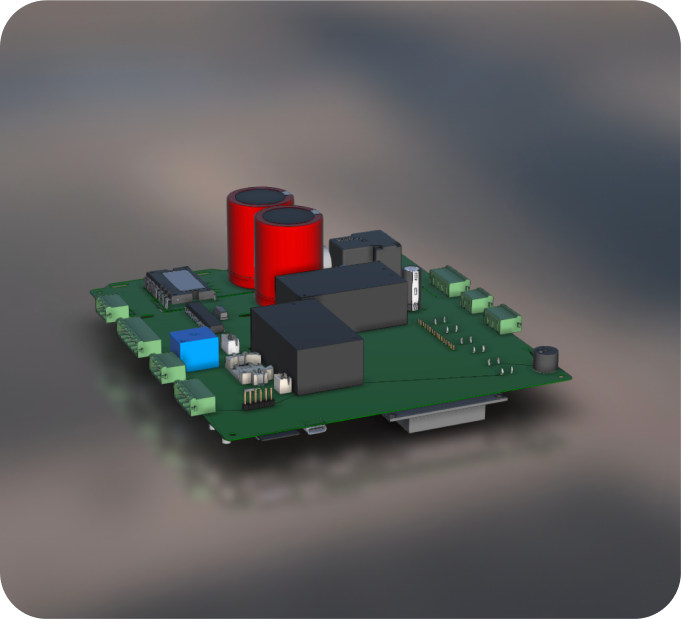

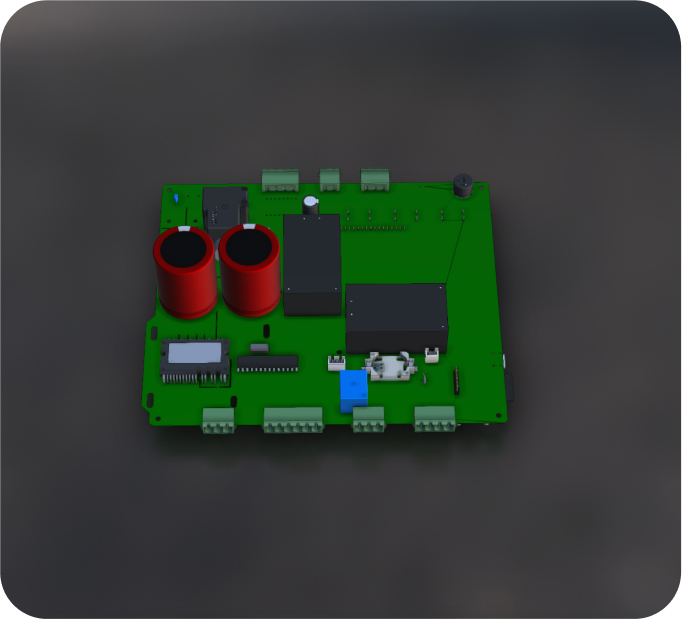

Universal BLDC Controller
Brand-agnostic control system for AC, fridge, and washing machines

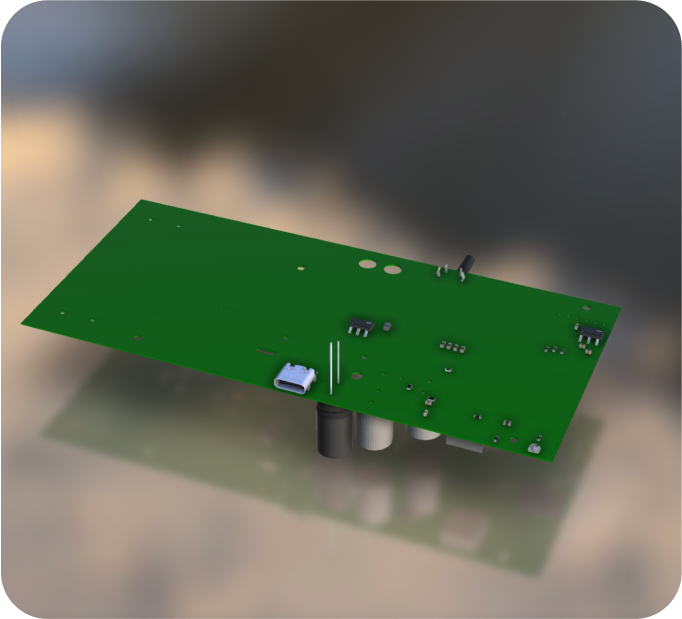

Universal BLDC Controller
(diagnostic tool for consumer electronics)
The Universal BLDC Controller is a versatile control and diagnostics device tailored for modern appliances and consumer electronics. It serves as both a BLDC motor controller and a brand-agnostic diagnostic system, capable of driving brushless DC motors while monitoring the health of key components.
Key Features:
Built-in controller capable of driving and regulating brushless DC motors in various appliances, supporting a wide voltage range and power output.
Integrated diagnostics that evaluate motor operation and controller health, detecting issues in motors, compressors, and other electromechanical components.
Sensors and interfaces for measuring refrigerant gas pressure/levels and other environmental parameters, aiding in the diagnosis of HVAC and refrigeration systems.
Air ConditionerDiagnosis
Washing MachineDiagnosis
RefrigeratorDiagnosis
| Commodity Model | ES32-AT8A-FNA41-ADB4-DS07-A89-GW-51 |
|---|---|
| Product Category | Diagnostic Controller (Consumer Electronics) |
| Communication | Wi-Fi, 4G LTE (wireless data and cloud connectivity) |
| Input Voltage | 220V AC (mains supply) |
| Device-Agnostic Diagnosis | Supports diagnostics for compressor, motor, refrigerant (gas) levels, and electrical measurements (resistance & capacitance) across brands. |
| Microcontroller | ATmega-8A (8-bit MCU) |
| Flash Memory | 8 KB |
| Output Power | Up to 3.3kW drive capability for motors |
| Dimensions (L×W×H) | 176.65 mm × 127.76 mm × 72 mm |
| 3-Phase VFD Output | 20–300 V DC (supports variable-frequency drive for 3-phase motors) |
| BLDC Motor Driver Output | 12–300 V DC (compatible with wide range of BLDC motor voltages) |
| Operating Temperature | -40 °C to +85 °C |

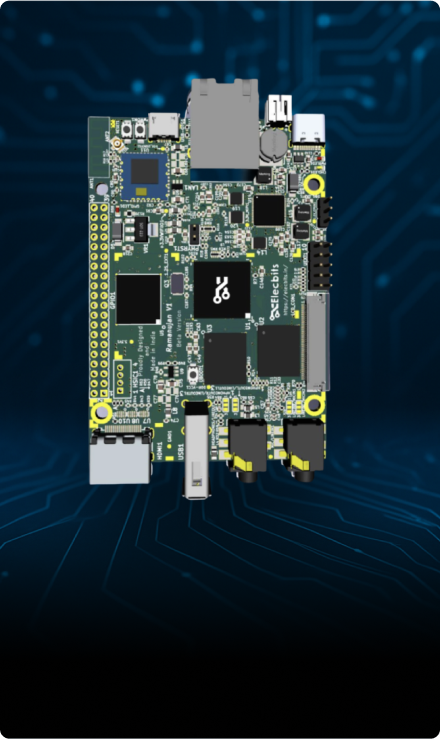

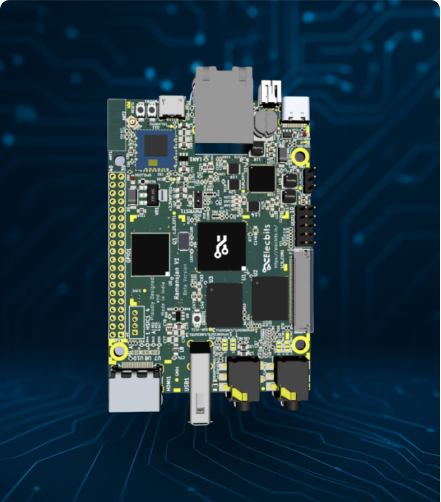

SOC Board Series
(Modular embedded Linux-based board for IoT edge processing)
SOC Board Series
(Linux-based modular processing board for IoT)
The SoC Board Series is a Linux-based modular processing platform engineered for IoT innovation. As one of India’s first affordable commercial System-on-Chip board series, it’s designed to be the core of next-generation IoT devices across the globe.
This board delivers the performance of a powerful embedded Linux computer while offering a modular architecture – you can attach various communication modules and peripherals to customize it for any smart application.
With on-board edge computing capabilities, the SoC Board can process data in real-time at the source, reducing cloud dependencies and improving response times. This Made-in-India solution empowers businesses to prototype, deploy, and scale IoT products in-house, accelerating development cycles and reducing the need for importing hardware platforms.
Key Features:
IoTGateways
IndustrialAutomation
SmartInfrastructure
R&DPrototyping
| Processor SoC | Quad-core ARM Cortex processor (1+ GHz), 32/64-bit architecture |
|---|---|
| Memory | 512MB / 1GB DDR3 RAM (depending on model) |
| Storage | On-board eMMC flash (expandable via microSD) |
| Operating System | Embedded Linux (Yocto-based or Debian-based OS support) |
| Wireless Support | Wi-Fi 802.11, Bluetooth 5.0; Optional LTE/NB-IoT and LoRa modules |
| I/O Interfaces | USB 2.0/3.0, GPIO headers, UART, I²C, SPI, CAN, ADC inputs |
| Power Supply | 5 V DC input (USB-C or header) |
| Dimensions | Compact form factor (credit-card sized PCB) |
| Operating Temperature | -20 °C to +85 °C (industrial temperature range components) |
| Compliance | CE and FCC certified, RoHS compliant (designed for global standards) |
